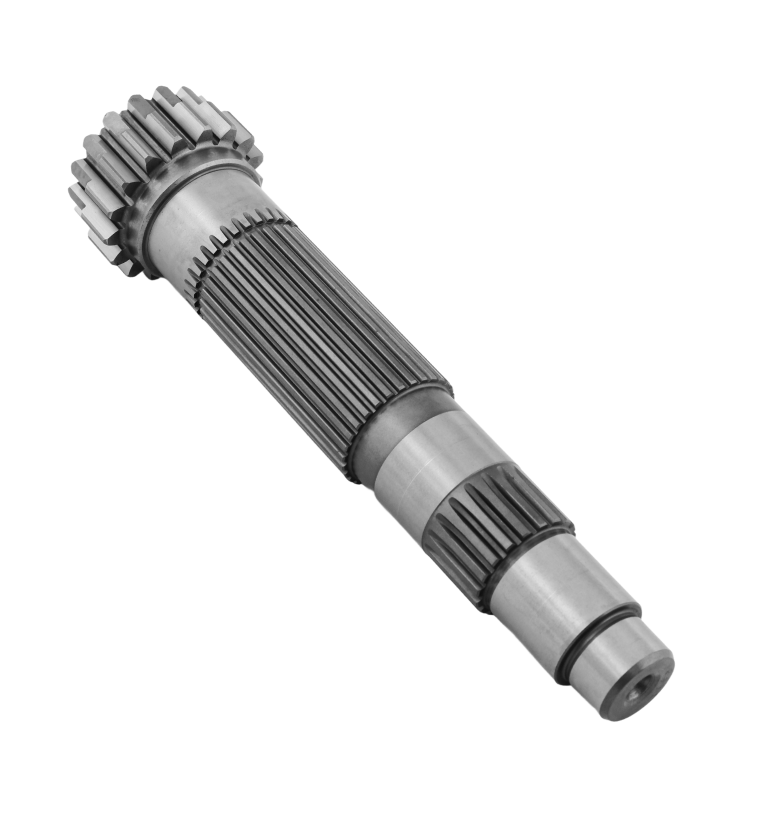

Designed for strength and stability, our transmission shafts transfer torque between drivetrain components with high torsional rigidity. Manufactured from alloy steels and heat-treated for fatigue resistance, they ensure seamless motion in demanding mechanical systems.

Part Specifications

Max. length 700 mm / Ext. 0.5 to 8.0 Module /
Int. 0.5 to 4.0 Module / Ext. Ø 25 mm to 80 mm / Min. Int. Ø 30 mm / Max. weight 50 Kgs. /
Spur & Helical ( 35° Max )

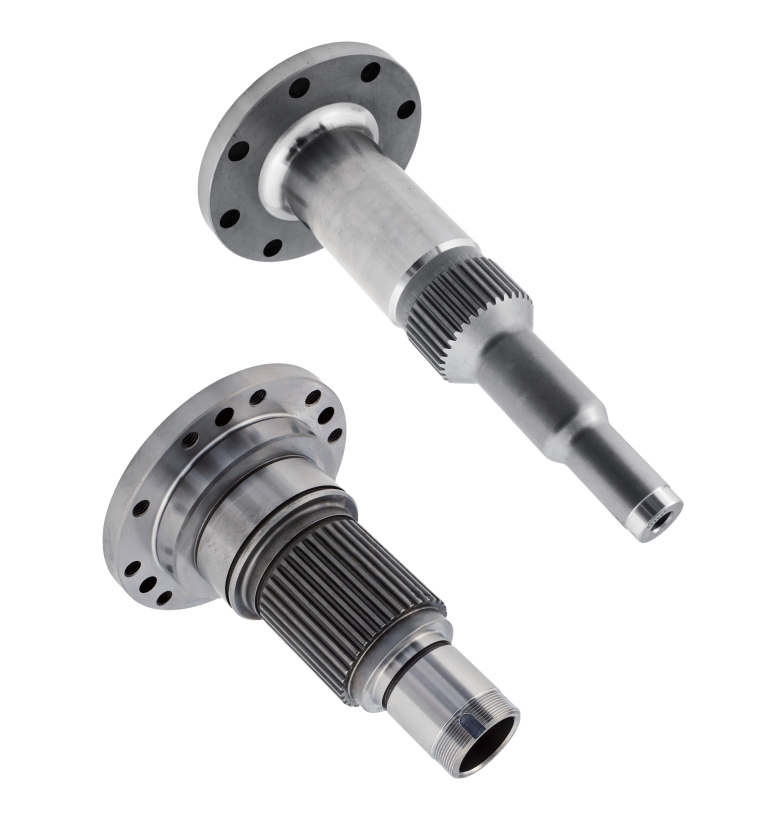

Our axle shafts transmit torque from the differential to the wheels with precision and strength. Integrated bearing and seal zones ensure durability, reduced wear, and consistent performance in high-load, high-speed applications.

Part Specifications

Max. length 500 mm / Flange Ø 250 mm /
Ext. 0.5 to 4.0 Module / Ext. Ø 25 mm to 80 mm / Max. weight 50 Kgs. / Spur & Helical ( 35° Max )

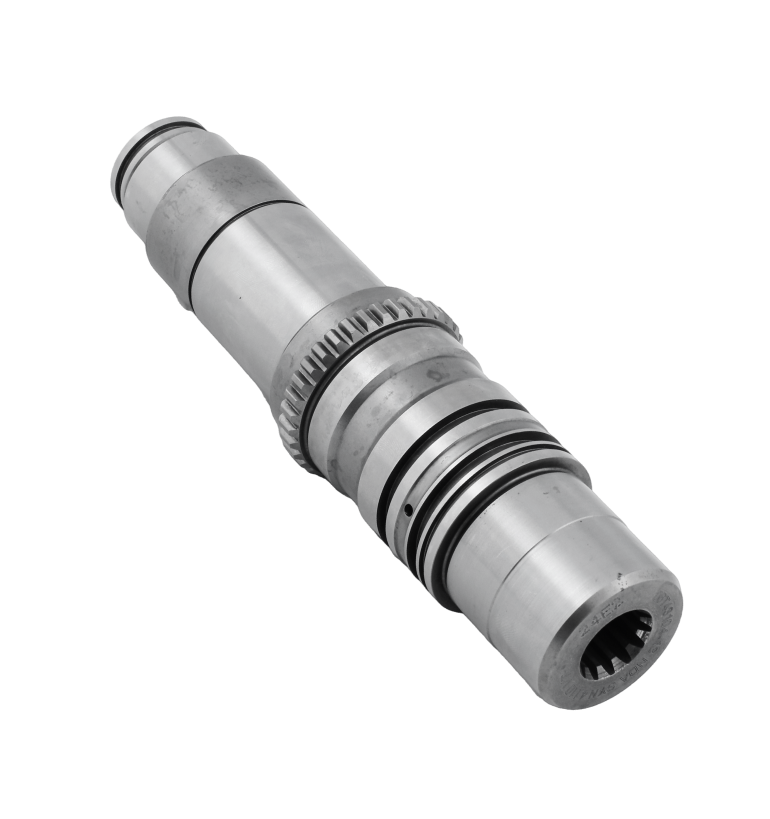

Crafted to transmit mechanical power, torque, and rotation between drivetrain components that are separated by distance or require movement flexibility. They include universal joints to accommodate alignment variations and ensure consistent power delivery.

Part Specifications

Max. length 500 mm / Ext. 0.5 to 4.0 Module / Int. 0.5 to 4.0 Module / Ext. Ø 25 mm to 80 mm / Min. Int. Ø 30 mm / Max. weight 50 Kgs. /
Spur & Helical ( 35° Max )

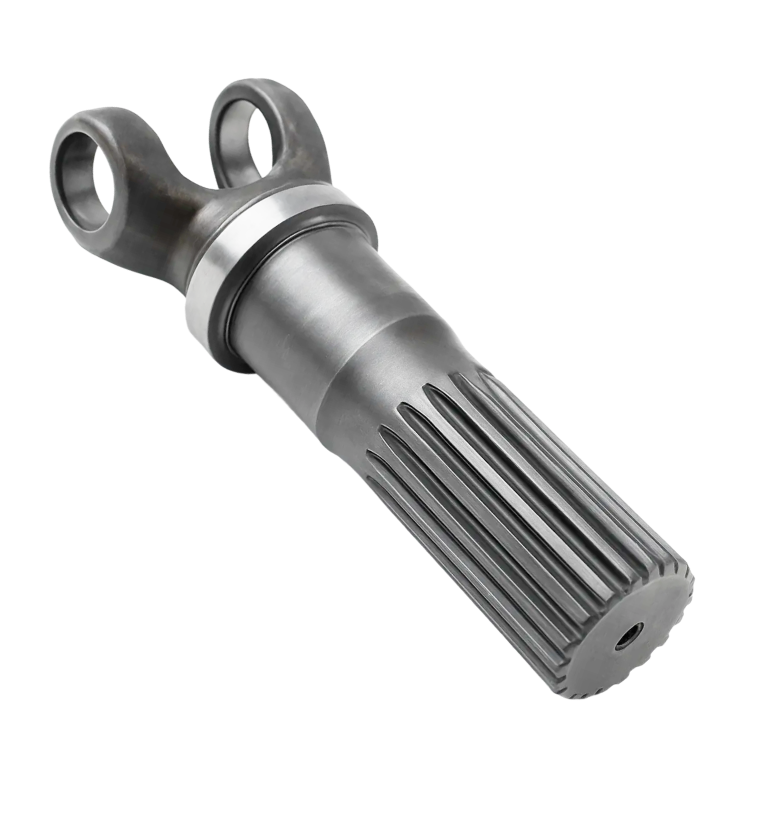

Our yoke shafts integrate splines and U-joint connections to support flexible yet secure torque transmission. Engineered for structural integrity and precise fit, they’re built for reliability under variable loads and speeds.

Part Specifications

Max. length 500 mm / Ext. 0.5 to 8.0 Module / Int. 0.5 to 4.0 Module / Ext. Ø 25 mm to 80 mm / Min. Int. Ø 30 mm / Max. weight 50 Kgs.

Precision-engineered ring gears made from high-quality steel, ensuring smooth torque transmission, high durability, wear resistance, and reliable performance in differential and gearbox applications.

Part Specifications

Max. Face width 125 mm / Int. 0.5 to 4.0 Module / Max. Ext. Ø 360 mm / Max. Int. Ø 250 mm /
Max. weight 30 Kg. / Spur & Helical ( 35° Max )

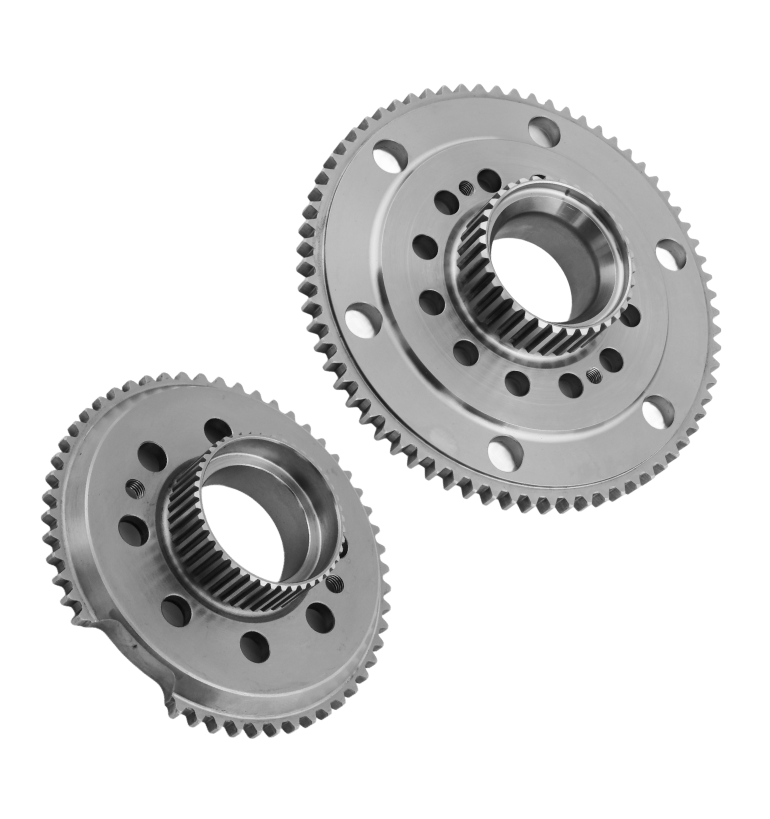

Robust components designed to securely hold ring gears within gear assemblies, ensuring precise alignment and optimal load distribution, contributing significantly to the reliability and longevity of the overall gear system.

Part Specifications

Max. Face width 125 mm / Ext. 0.5 to 4.0 Module / Int. 0.5 to 4.0 Module / Max. Ext. Ø 400 mm / Min. Int. Ø 30 mm / Max. weight 50 Kg.

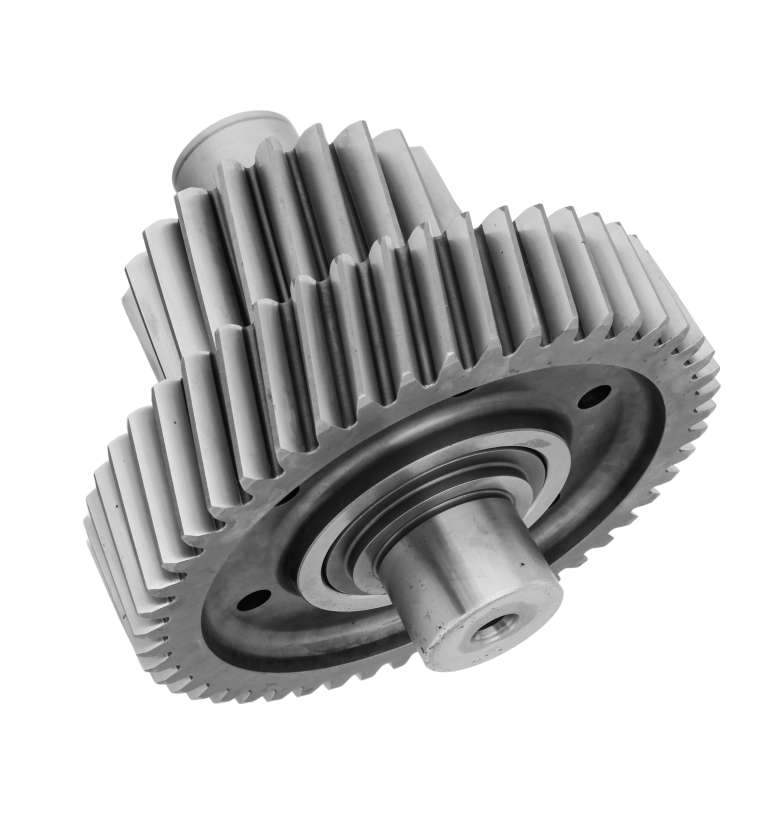

Our spur gears, with straight teeth are ideal for high-speed, low-torque applications while Helical gears, with angled teeth, provide quieter operation, greater load-carrying capacity, and smoother power transfer.

Part Specifications

Max. Face width 125 mm / Ext. 0.5 to 8.0 Module / Int. 0.5 to 4.0 Module / Max. Ext. Ø 500 mm / Min. Int. Ø 20 mm / Max. weight 50 Kg. /
Spur & Helical ( 35° Max )

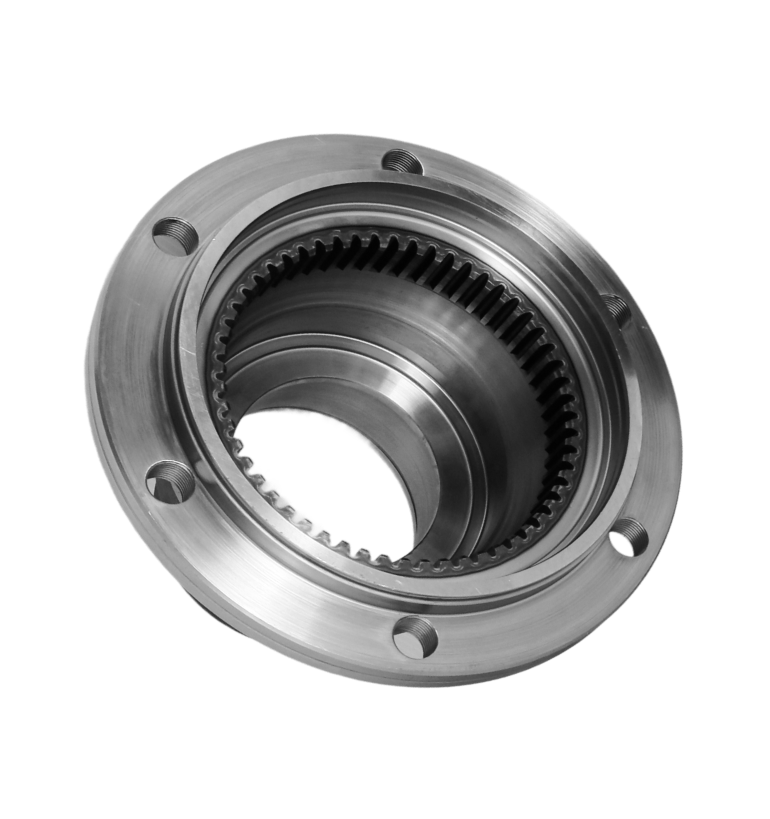

Functioning as a central component that connects rotating elements such as wheels or gears to shafts or axles, our hubs are precision-machined for balance, strength, and alignment—ensuring dependable torque transmission in mechanical assemblies.

Part Specifications

Max. Face width 125 mm / Ext. 0.5 to 8.0 Module / Int. 0.5 to 4.0 Module / Max. Ext. Ø 500 mm / Min. Int. Ø 20 mm / Max. weight 50 Kg. /
Spur & Helical ( 35° Max )

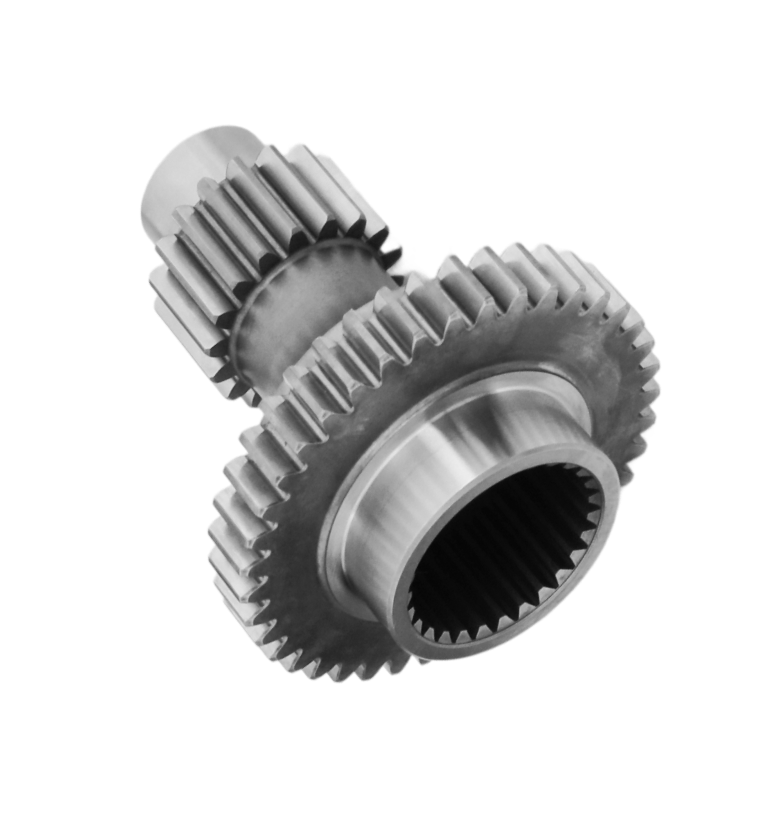

For systems requiring extreme precision and low noise, our ground gears offer ultra-smooth surfaces with tight tolerances. Profile grinding ensures improved efficiency, minimal vibration, and superior service life.

Part Specifications

Max. Face width 125 mm / Ext. 0.5 to 8.0 Module / Int. 0.5 to 4.0 Module / Max. Ext. Ø 500 mm / Max. Int. Ø 250 mm / Max. weight 50 Kg. /
Spur & Helical ( 35° Max )

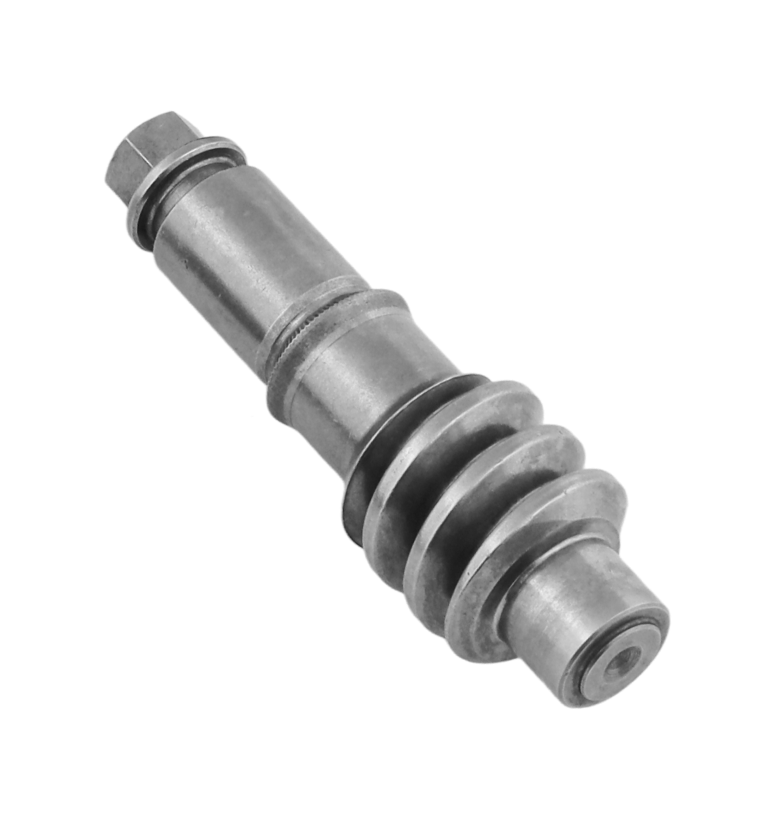

This compact gear assembly set is designed to enable high reduction ratios and exceptionally smooth, quiet operation. Ideal for applications requiring precise speed control, they provide efficient torque transmission along with inherent self-locking functionality

Part Specifications

Max. Face width 125 mm / Ext. 0.5 to 3.0 Module / Max. Ext. Ø 300 mm / Min. Int. Ø 20 mm /
Max. weight 50 Kg.

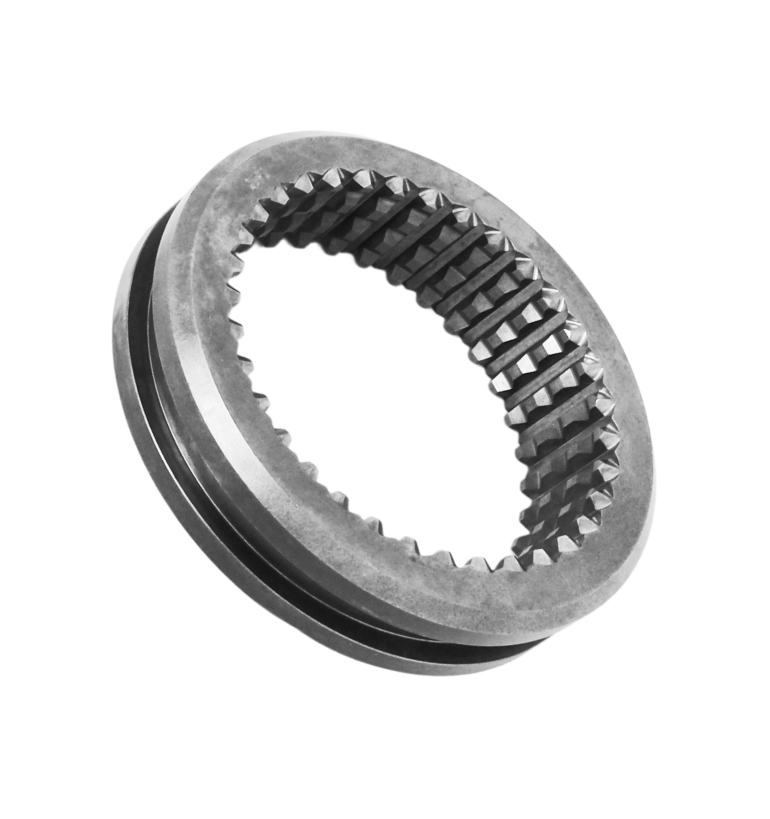

Sleeves serve as alignment, reinforcement, or wear-protection components within shafts and rotating assemblies. Manufactured for tight tolerances, these cylindrical components ensure durability and easy maintenance.

Part Specifications

Max. Face width 125 mm / Ext. 0.5 to 4.0 Module / Int. 0.5 to 4.0 Module / Max. Ext. Ø 300 mm / Max. Int. Ø 250 mm / Max. weight 50 Kg.

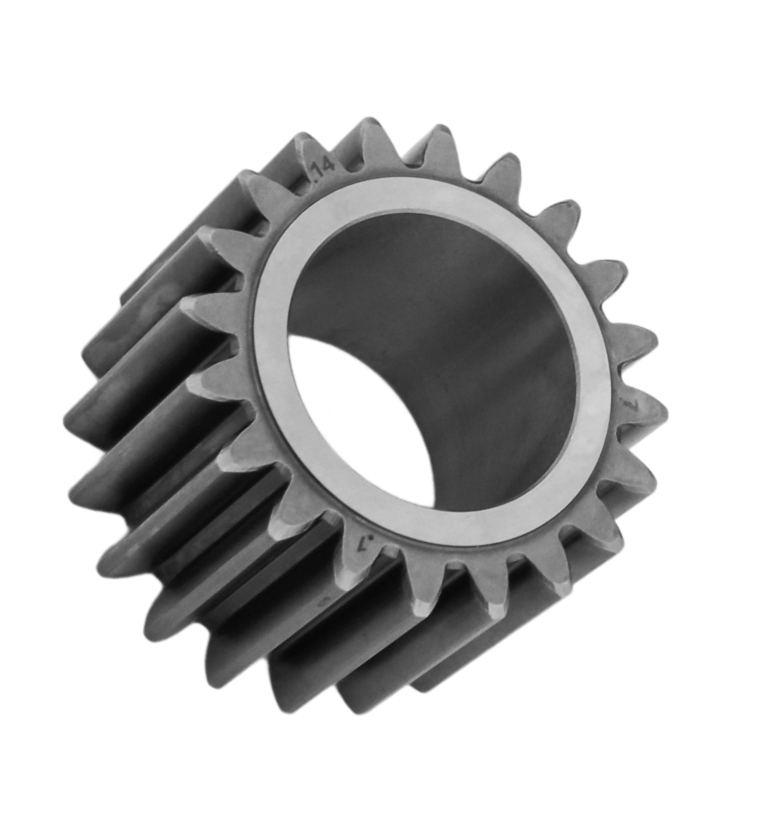

Combining compactness with power density, our planetary gears consist of a central sun gear, surrounding planet gears, and an outer ring gear to deliver balanced load distribution. Ideal for automatic transmissions and industrial gear systems.

Part Specifications

Max. Face width 125 mm / Ext. 0.5 to 8.0 Module / Max. Ext. Ø 500 mm / Min. Int. Ø 20 mm /
Max weight 50 Kg. / Spur & Helical ( 35° Max )

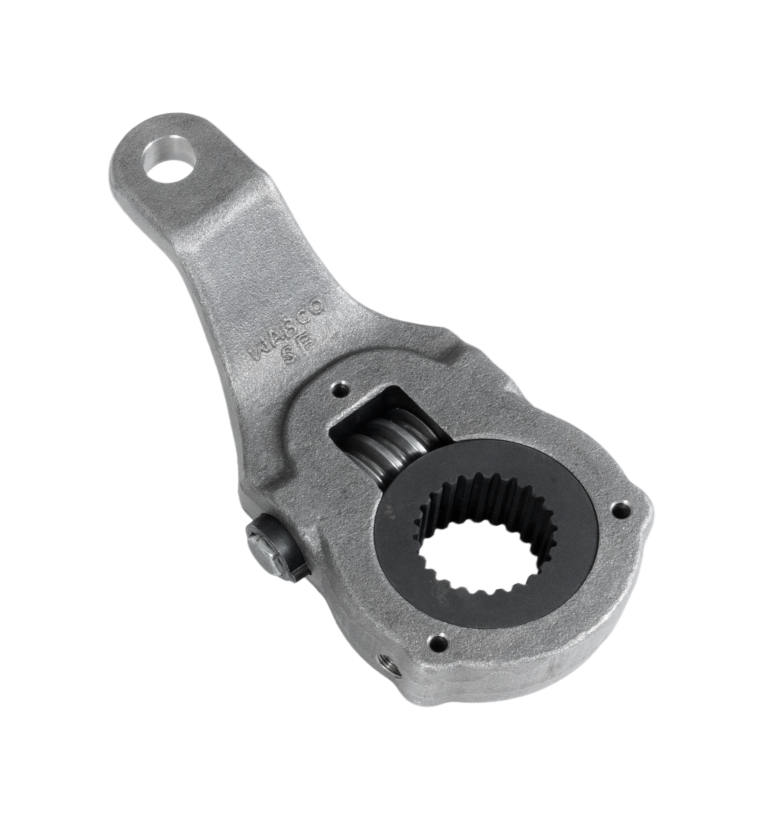

Used in brake assemblies, these components regulate brake shoe clearance through manual adjustment. Engineered for accuracy and longevity, they ensure consistent brake response and reduced wear over time.

Part Specifications

Max. Face width 125 mm / Ext. 0.5 to 3.0 Module / Max. Ext. Ø 300 mm / Min. Int. Ø 20 mm /
Max. weight 50 Kg.

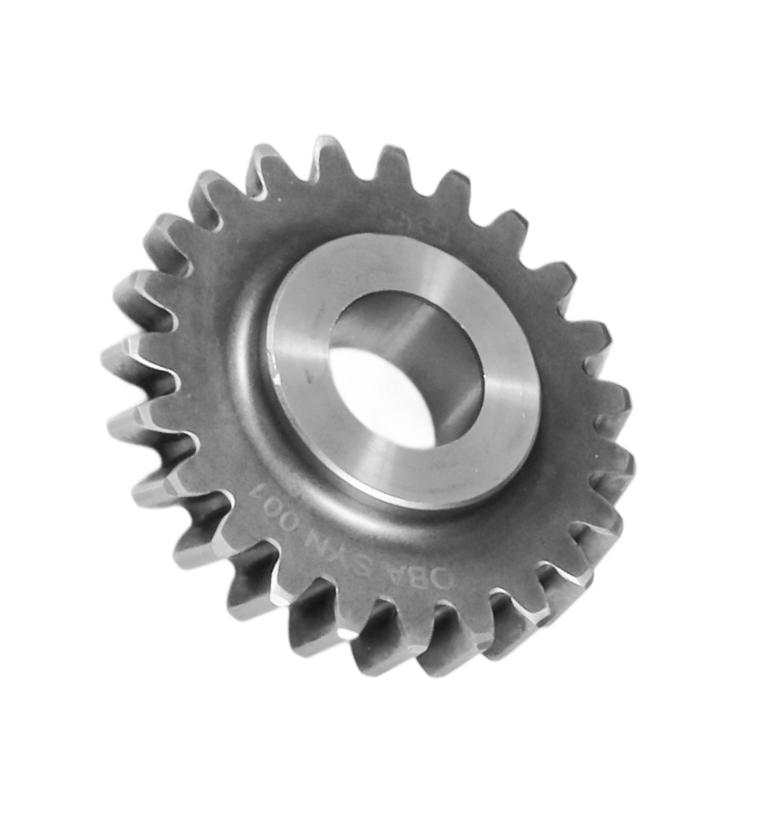

High-precision gears that enable controlled fluid displacement in pumps. Their robust construction and accurate tooth profiles ensure smooth operations and support performance-critical systems.

Part Specifications

Max. Face width 125 mm / Ext. 0.5 to 4.0 Module / Max. Ext. Ø 300 mm / Min. Int. Ø 20 mm /
Max. weight 50 Kg. / Spur & Helical ( 35° Max )

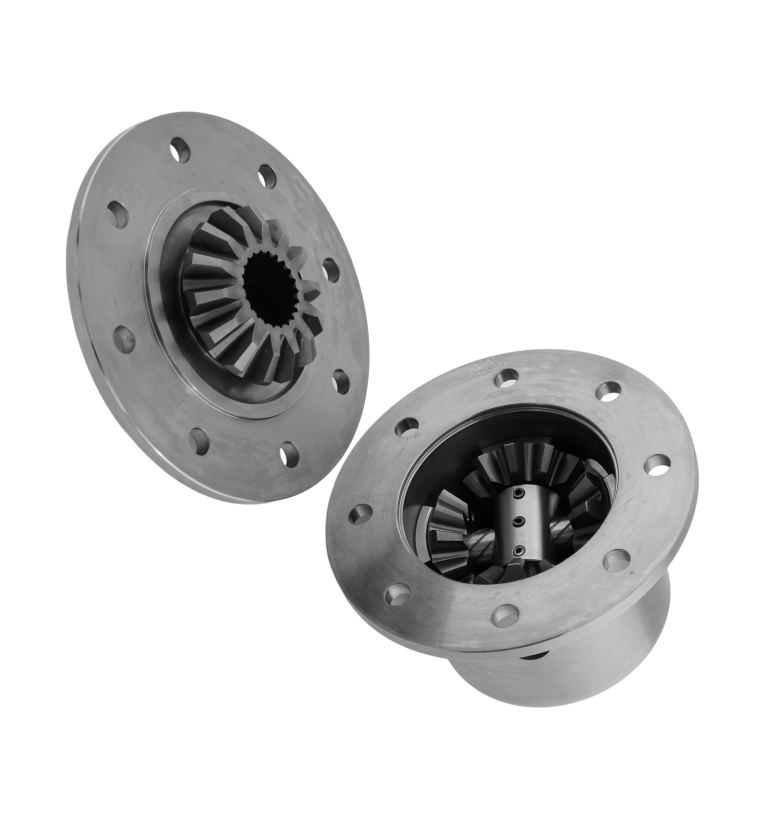

Our custom gearboxes are built to exact customer specifications, with optimised gear ratios, torque, and speed tailored to each application, ensuring modularity, long service life, and enhanced performance across diverse industrial applications.

Casings and sub-assemblies are manufactured as per customer specifications, while internal gears are engineered strictly in line with the perviously described technical specifications.
